Intra-Aortic Balloon Pump (IABP): A Detailed Overview

Introduction

The Intra-Aortic Balloon Pump (IABP) is a mechanical circulatory support device used to augment cardiac function in critically ill patients. It is primarily employed in cases of cardiogenic shock, acute myocardial infarction, and high-risk cardiac surgeries. By improving coronary perfusion and reducing afterload, the IABP helps stabilize hemodynamics and supports myocardial recovery.

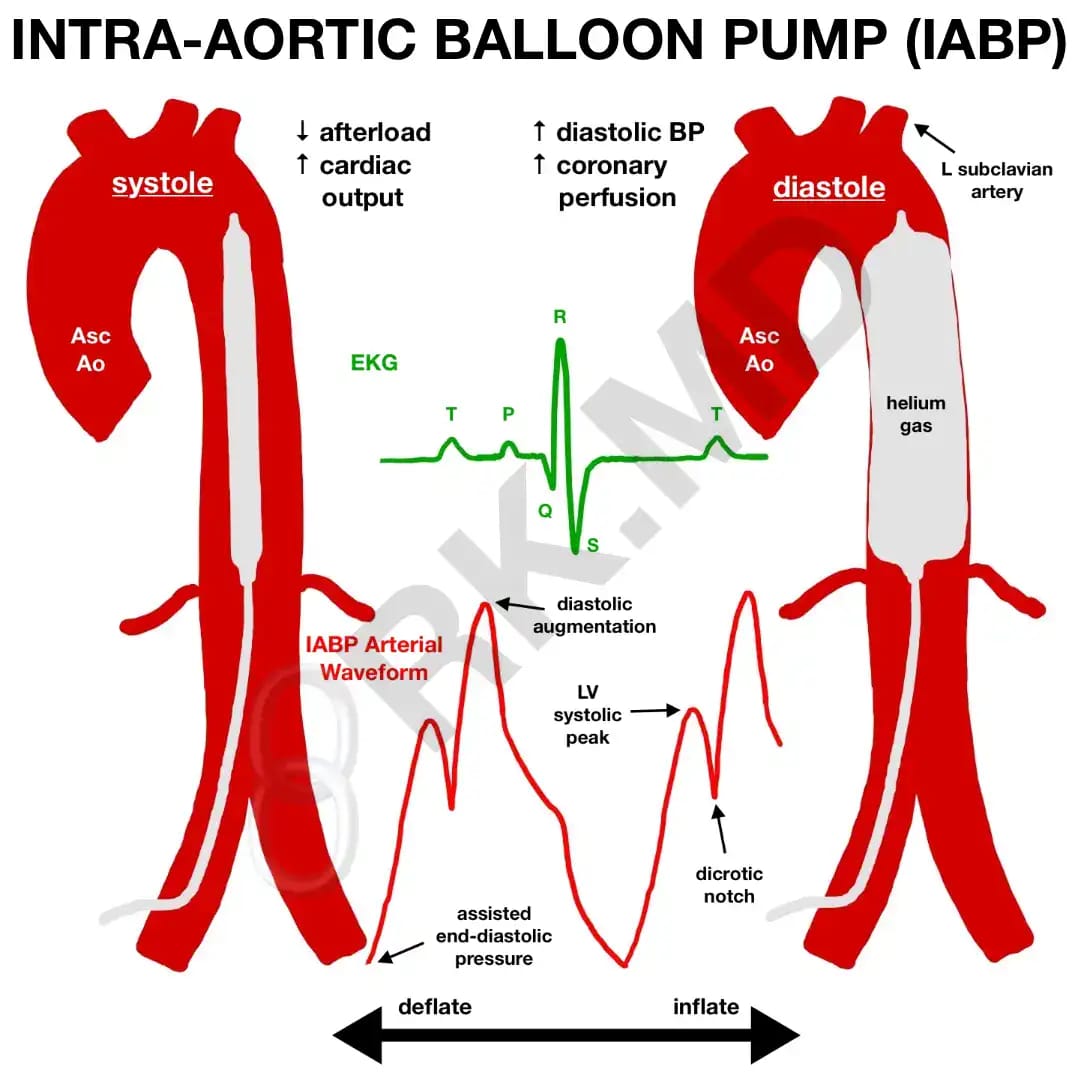

Mechanism of Action: Counterpulsation

The IABP operates on the principle of counterpulsation, meaning it inflates and deflates in opposition to the cardiac cycle:
- Inflation during diastole: Increases aortic diastolic pressure, enhancing coronary artery perfusion.
- Deflation just before systole: Reduces aortic pressure, decreasing left ventricular afterload and myocardial oxygen demand.

The balloon is filled with helium, a low-density gas that allows rapid inflation and deflation. The device is synchronized with the cardiac cycle using ECG or arterial pressure waveforms.

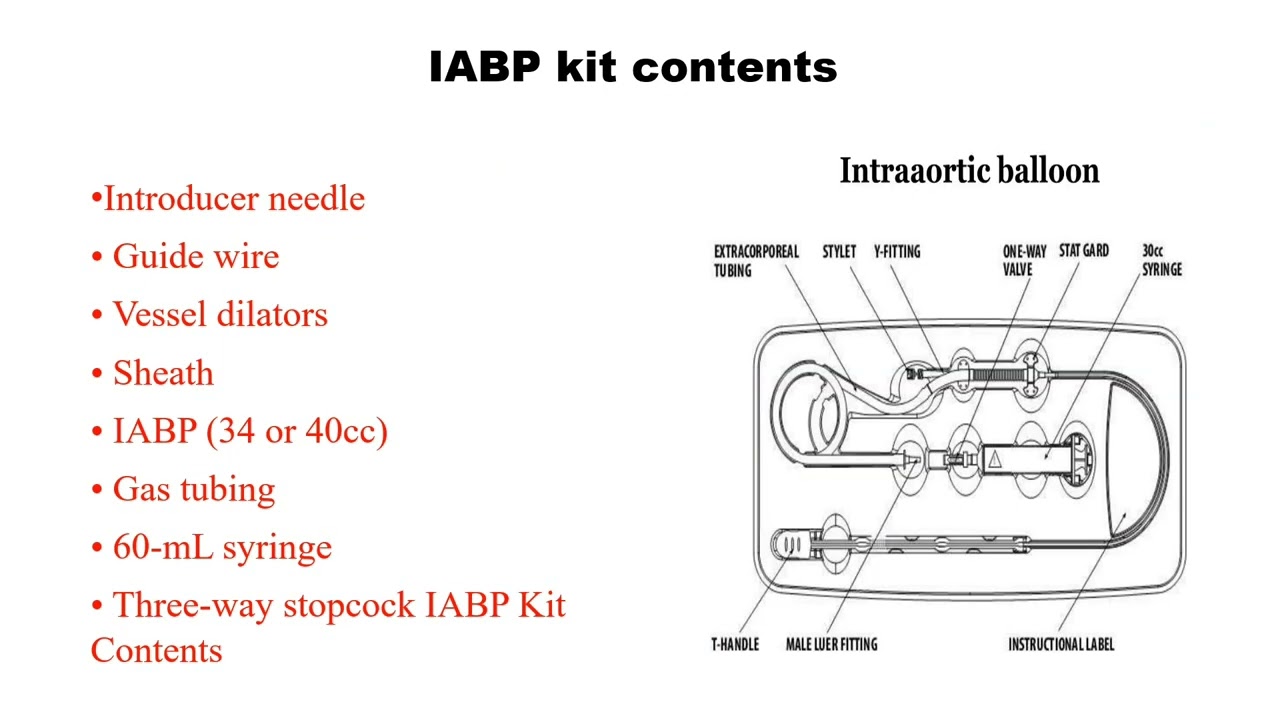

Components of the IABP System

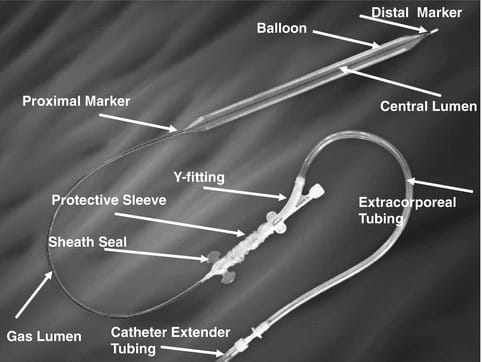

1. Balloon Catheter:

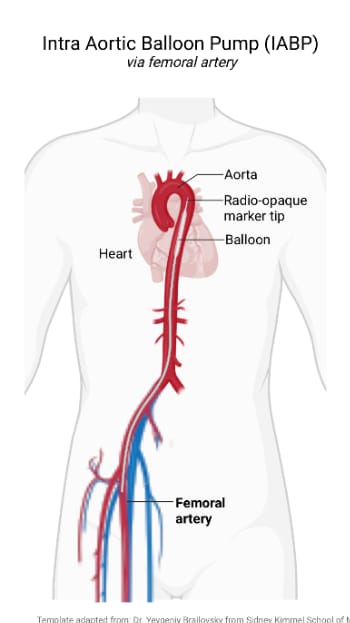

- Inserted via the femoral artery and advanced to the descending thoracic aorta.
- Positioned just distal to the left subclavian artery.
- Balloon size varies (25–50 cc) based on patient height.



2. Console:
- Controls inflation/deflation timing.
- Monitors arterial pressure waveforms.
- Contains helium tank and safety alarms.



3. Triggering Mechanism:
- ECG (R-wave detection).

1.
   - Arterial pressure waveform.
   - Internal mode for asystole.

Indications

IABP is used in various clinical scenarios, including:
- Cardiogenic shock (especially post-MI).
- Acute mitral regurgitation or ventricular septal rupture.

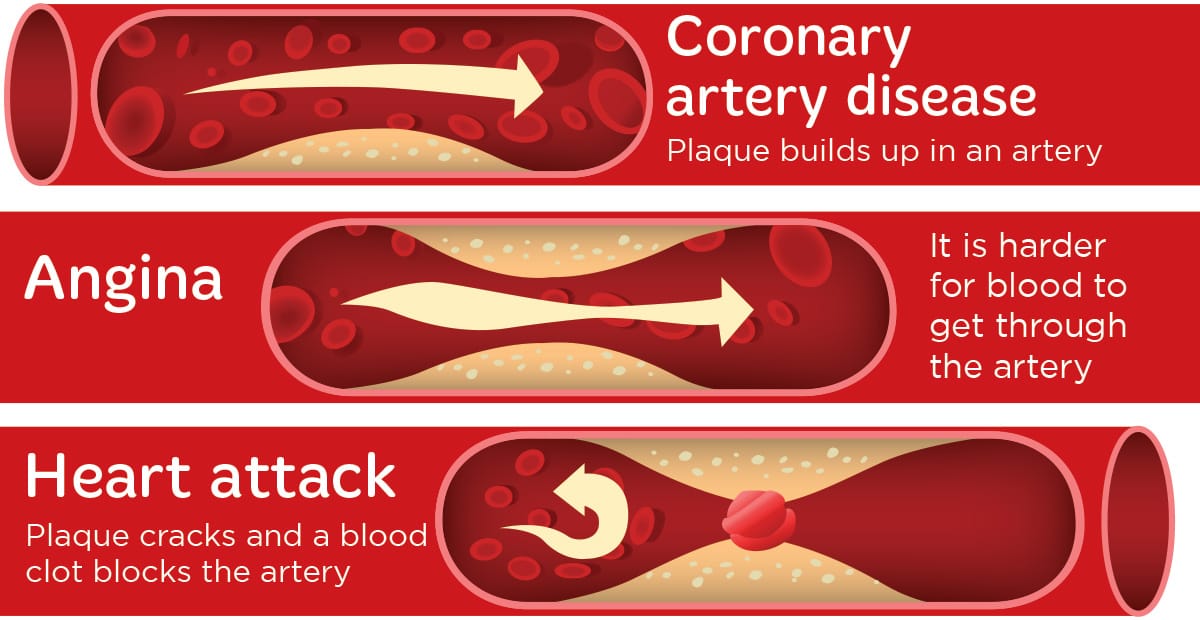

- Unstable angina refractory to medical therapy.
- Bridge to surgery or transplant.
- High-risk percutaneous coronary intervention (PCI).
- Post-cardiotomy low cardiac output syndrome.

Contraindications

Absolute:

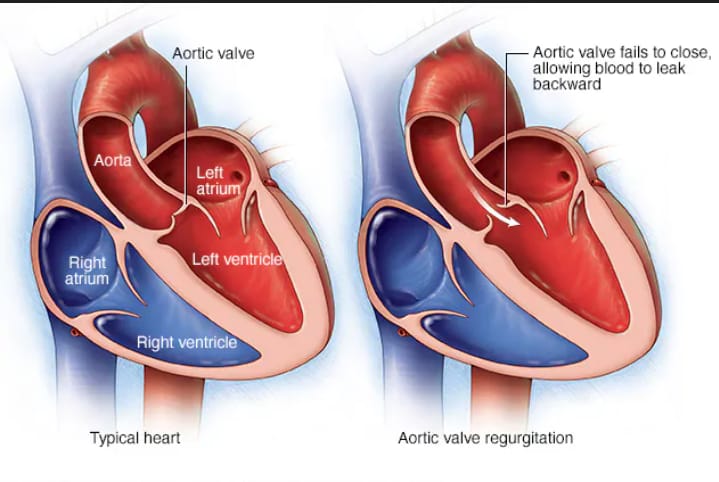

- Aortic regurgitation (worsens regurgitant volume).
- Aortic dissection.
- Severe peripheral vascular disease.

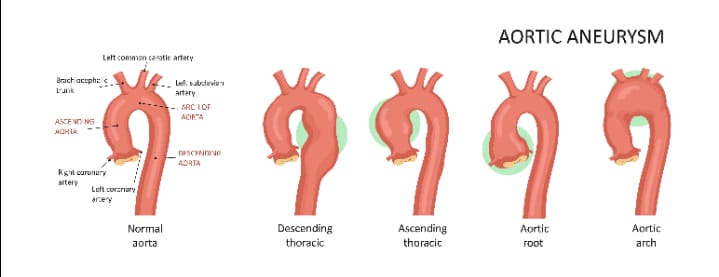

- Aortic aneurysm.
- Sepsis or active infection at insertion site.



Insertion Technique

- Approach: Usually via the femoral artery using the Seldinger technique.


- Positioning: Tip of the balloon should lie 2 cm distal to the left subclavian artery.
- Confirmation: Chest X-ray, fluoroscopy, or transesophageal echocardiography (TOE).

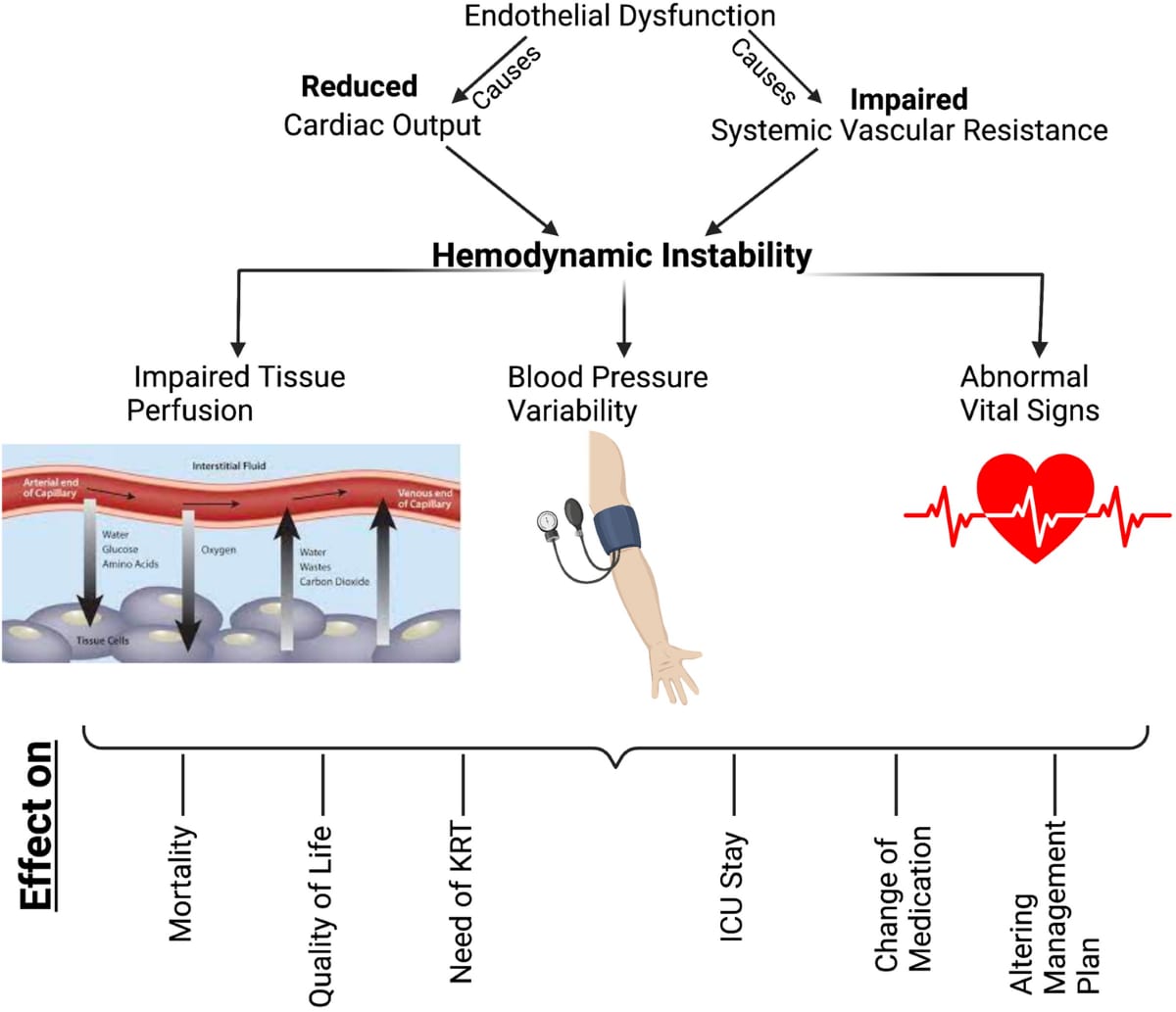

Hemodynamic Effects

- Increased coronary perfusion during diastole.
- Reduced afterload during systole.
- Improved cardiac output (by 0.5–1.0 L/min).
- Decreased myocardial oxygen consumption.

Complications

Vascular:
- Limb ischemia.
- Aortic dissection or perforation.
- Retroperitoneal hemorrhage.
- Pseudoaneurysm.



Mechanical:
- Balloon rupture (helium embolism risk).
- Thrombocytopenia.
- Hemolysis.

Infectious:
- Catheter-related infections.

Positioning Errors:
- Too high: Left subclavian occlusion.
- Too low: Renal or mesenteric ischemia.

Monitoring and Troubleshooting

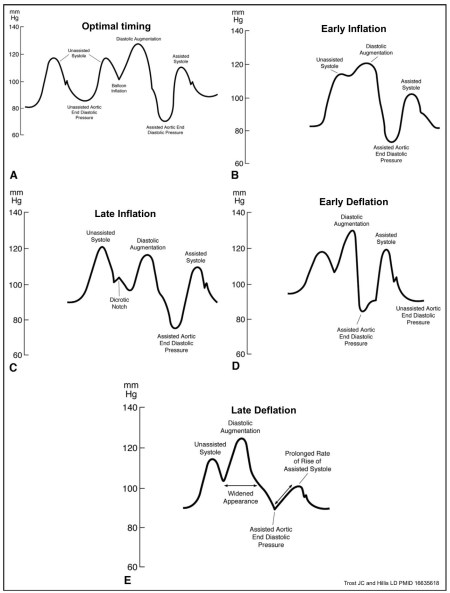

- Waveform analysis: Augmented diastolic pressure should exceed systolic pressure.
- Timing: Inflation at dicrotic notch; deflation before systole.
- Assist ratio: Typically 1:1, can be weaned to 1:2 or 1:3.
- Alarms: Detect timing errors, gas leaks, or pressure abnormalities.

Anticoagulation

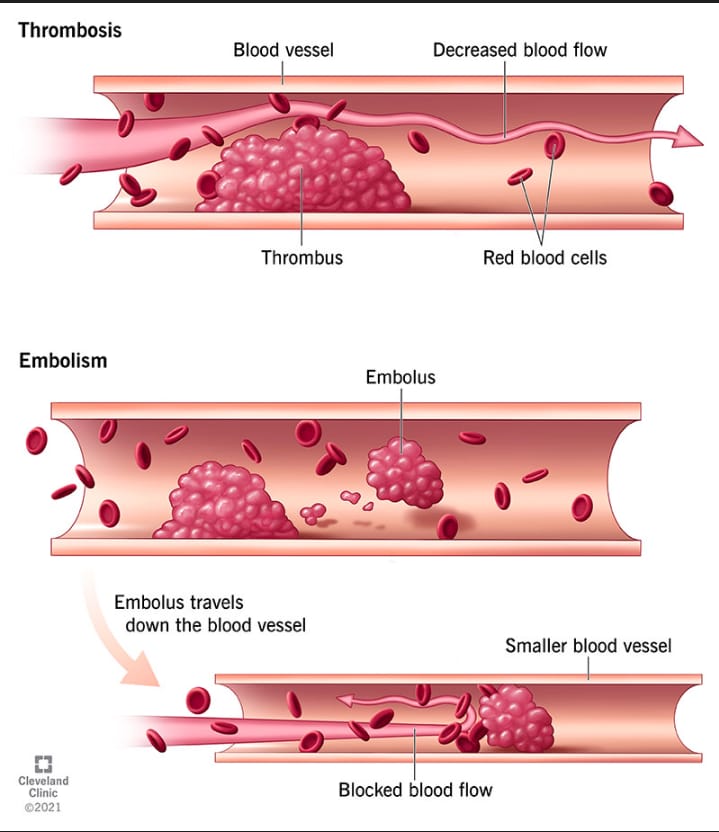

- Controversial: Some centers use low-dose heparin; others avoid routine anticoagulation.
- Risk-benefit: Balancing thrombotic vs. bleeding complications.

Weaning and Removal

- Criteria: Hemodynamic stability, reduced inotropic support.
- Process:
  - Gradually reduce assist ratio (e.g., 1:1 → 1:2 → 1:3).
  - Monitor for rebound hypotension.
- Removal: Manual compression or surgical closure depending on sheath use.

Evidence and Outcomes

- IABP-SHOCK II Trial (2012): No mortality benefit at 30 days in MI-related cardiogenic shock.
- Other studies: Mixed results; benefit more likely in mechanical complications or as bridge therapy.
- Guidelines: Once Class I recommendation, now downgraded due to lack of survival benefit in some settings.

Special Considerations

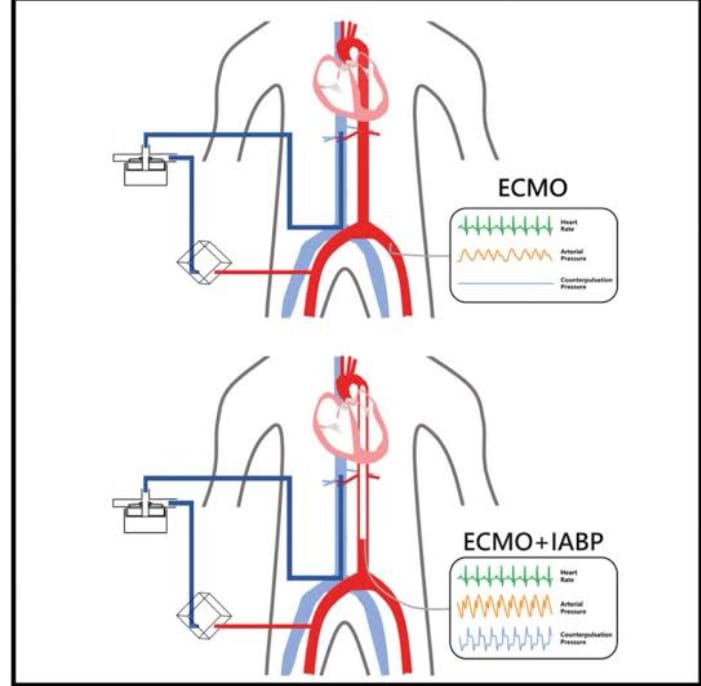

- ECMO + IABP: May be used together in select cases to reduce LV afterload.
- Balloon rupture: Look for blood in helium tubing.
- Helium embolism: Rare but serious; requires immediate cessation and head-down positioning.
