ECMO (Extracorporeal Membrane Oxygenation) is a life-saving, temporary treatment option that provides cardiopulmonary support for patients experiencing severe heart and/or lung failure. In the context of lung transplantation, ECMO is often used as a bridge to lung transplant for patients who are in acute respiratory failure or severe, end-stage lung disease and are unable to survive the wait for a donor lung without mechanical support. ECMO acts as a temporary solution to keep the patient alive while awaiting a suitable donor lung.

What is ECMO?

ECMO is a machine that temporarily performs the work of the heart and/or lungs, depending on the type of support needed:

• VV-ECMO (Veno-Venous ECMO) is most commonly used in lung transplant patients as it provides support primarily for pulmonary (lung) function.

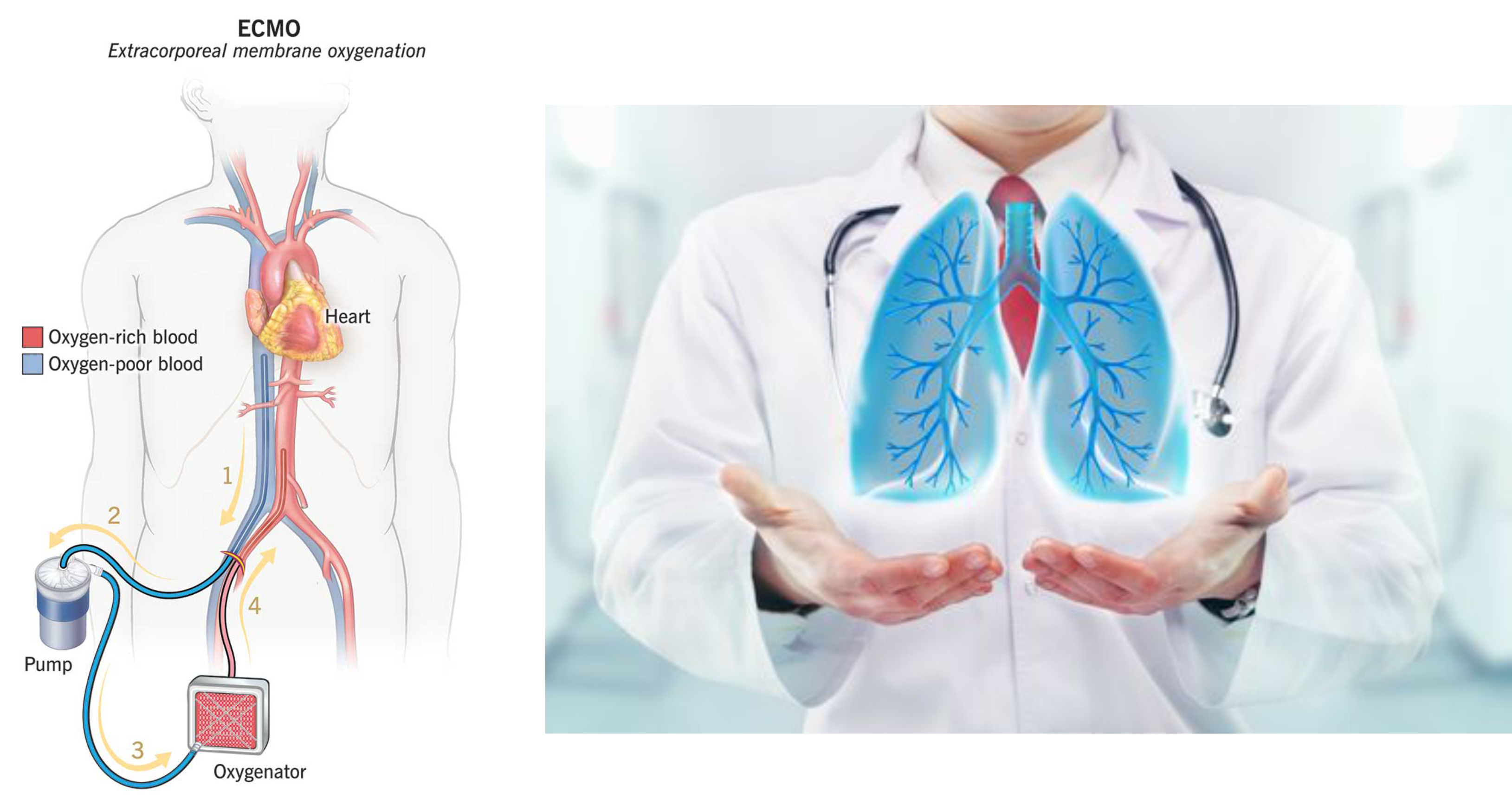

• VV-ECMO involves drawing blood from a vein, passing it through an oxygenator (which adds oxygen and removes carbon dioxide), and returning the oxygenated blood back into the body via another vein.
• This allows the lungs to rest and heal, and provides gas exchange to maintain adequate oxygen levels while waiting for a donor lung.
• VA-ECMO (Veno-Arterial ECMO) is used when both heart and lung support are needed, but it is less commonly used in the context of lung transplant.

Indications for ECMO as a Bridge to Lung Transplant

ECMO is typically used for patients with severe, acute respiratory failure who are not stable enough to wait for a lung transplant without mechanical support. Some of the primary indications include:

1. Acute Respiratory Failure:
• Acute respiratory distress syndrome (ARDS) or other types of severe respiratory failure that cannot be managed by conventional mechanical ventilation or other treatments.
• ARDS is often caused by trauma, pneumonia, sepsis, or aspiration, and in its severe form, it may require ECMO.
2. End-Stage Chronic Lung Disease:
• For patients with end-stage chronic lung diseases, such as idiopathic pulmonary fibrosis (IPF), chronic obstructive pulmonary disease (COPD), emphysema, or cystic fibrosis, ECMO can be used to stabilize the patient while waiting for a donor lung.
3. Pulmonary Hypertension:
• Severe pulmonary hypertension (high blood pressure in the lungs' blood vessels) can cause the right side of the heart to fail, leading to severe respiratory failure that requires ECMO for support.
4. Bronchial Obstruction:
• Severe airway obstruction from a tumor, tracheal stenosis, or other causes that lead to inadequate ventilation and oxygenation can necessitate ECMO for life support while awaiting transplant.
5. Lung Transplant Complications:
• Patients with post-transplant complications such as primary graft dysfunction (PGD), chronic rejection, or infection that lead to acute respiratory failure may require ECMO as a bridge until further treatment or a retransplant can occur.
6. Refractory Hypoxemia or Hypercapnia:
• In cases of hypoxemia (low oxygen levels) or hypercapnia (high carbon dioxide levels) that do not improve with mechanical ventilation, ECMO provides additional respiratory support to correct gas exchange.
7. Pediatric Patients:
• In some cases, ECMO is used in pediatric patients with severe lung disease or congenital lung malformations who are awaiting a lung transplant.

How ECMO Works in a Lung Transplant Patient

ECMO temporarily takes over the function of the lungs, ensuring proper gas exchange (oxygenation and carbon dioxide removal) while the patient's lungs are either healing or awaiting a transplant. Here’s how ECMO works for lung transplant patients:

1. VV-ECMO Setup:
• Blood is drained from a large vein (usually the femoral vein or internal jugular vein) through a cannula.
• The blood is pumped through the ECMO circuit to an oxygenator where it is oxygenated and carbon dioxide is removed.
• The oxygenated blood is then returned to the body, typically through a large vein near the heart or into the superior vena cava (via a cannula placed in the jugular vein or subclavian vein).
2. Rest for the Lungs:
• The ECMO machine provides gas exchange without requiring the patient’s lungs to perform the work, allowing the lungs time to recover (in cases of reversible injury) or to continue functioning temporarily until a donor lung becomes available.
3. Blood Flow and Oxygenation:
• The ECMO machine helps maintain adequate oxygenation and perfusion to vital organs and tissues, preventing further damage to the brain, kidneys, and other organs.
4. Continuous Monitoring:
• ECMO requires constant monitoring and management, including adjusting oxygen levels, blood flow rates, and anticoagulation therapy to prevent clots while ensuring the ECMO circuit works efficiently.

Procedure for ECMO Initiation

The procedure for initiating ECMO is highly invasive and performed in critical care settings such as the intensive care unit (ICU). The steps typically include:

1. Vascular Access:
• Large cannulas are inserted into a major vein and/or artery, such as the femoral vein and femoral artery, or the jugular vein.
• The procedure is usually done under local anesthesia and sedation with close monitoring in an ICU setting.
• In some cases, the cannulas may be placed in the operating room under general anesthesia, especially if the patient is already in critical condition.
2. ECMO Circuit Setup:
• The patient is connected to the ECMO machine, which will then begin oxygenating the blood and circulating it throughout the body.
• The ECMO team adjusts the flow and settings of the machine to maintain adequate oxygen levels.
3. Monitoring and Support:
• The patient is carefully monitored for signs of infection, bleeding, or other complications that may arise during ECMO support.
• The healthcare team adjusts medications, including anticoagulants, to prevent clotting in the ECMO circuit while ensuring that the patient's heart and organs continue to function.
4. Ventilator Management:
• Although ECMO takes over lung function, the patient is usually still on a ventilator to assist with airway protection, especially if they are unable to breathe on their own. Ventilator settings may be adjusted to allow the lungs to rest while ECMO does the work of oxygenating blood.

Benefits of ECMO as a Bridge to Lung Transplant

1. Stabilization of the Patient:
• ECMO provides immediate circulatory and respiratory support to patients in acute respiratory failure, giving them time to stabilize and wait for a suitable donor lung.
2. Lung Protection and Rest:
• ECMO provides lung rest, which is crucial for patients with severe ARDS, chronic obstructive pulmonary disease (COPD), or other lung diseases, helping prevent further damage.
3. Improved Organ Perfusion:
• By ensuring adequate blood flow and oxygenation, ECMO helps protect vital organs, such as the brain, kidneys, and liver, from the consequences of severe hypoxemia (low oxygen).
4. Buying Time for a Donor Lung:
• For patients who are too unstable to wait for a transplant without support, ECMO serves as a bridge that allows them to survive until a donor lung becomes available.
5. Bridge to Further Treatment or Lung Transplant:
• ECMO can support patients during the process of evaluation for lung transplant and ensure they are stable and in good condition for transplantation when a donor organ becomes available.

Risks and Complications of ECMO

ECMO is a high-risk procedure that carries a number of potential complications, including:

1. Infection:
• Infection is a significant risk because of the need for invasive cannulas and the use of mechanical circuits.
2. Bleeding:
• Anticoagulation therapy is required to prevent clotting in the ECMO circuit, but this increases the risk of bleeding complications, particularly in the cannulation sites or internally.
3. Blood Clots:
• The formation of clots within the ECMO circuit can block blood flow, which can lead to stroke, organ failure, or ECMO malfunction.
4. Organ Dysfunction:
• Although ECMO helps to protect organs, prolonged use can result in kidney failure, liver dysfunction, or neurological complications due to decreased perfusion or complications from the ECMO circuit itself.
5. Mechanical Complications:
• There are risks of pump failure, circuit clotting, or cannula dislodgement, all of which require immediate intervention.
6. Vascular Injury:
• Insertion of the cannulas can result in vascular injury or bleeding at the access sites.
7. Right Heart Failure:
• Patients on ECMO may develop right heart failure due to the extra burden placed on the heart by the ECMO circuit, which can complicate the patient’s clinical course.

Post-ECMO and Lung Transplant

Once a suitable donor lung becomes available, the patient will undergo a lung transplant. During the transplant surgery, ECMO is typically removed, and the new lung is implanted. Here’s what happens next:

1. Lung Transplant Surgery:
• The patient undergoes a thoracotomy (surgical incision in the chest) to remove the diseased lungs and implant the donor lungs.
2. ECMO Removal:
• ECMO is gradually discontinued as the patient’s new lungs begin to function. The ECMO team ensures that the transition is smooth and the patient can tolerate the procedure.
3. Post-Transplant Care:
• The patient is closely monitored for complications such as rejection, infection, or airway issues. Immunosuppressive drugs are started to prevent transplant rejection.
4. Rehabilitation:
• After the transplant, the patient undergoes rehabilitation to regain strength and improve pulmonary function.

Prognosis and Survival Rates

The survival rates for ECMO as a bridge to lung transplant vary but are generally as follows:

• Survival to lung transplant: Many patients successfully survive on ECMO until a donor lung becomes available. One-year survival rate for patients on ECMO as a bridge to transplant is approximately 60-70%.
• Post-lung transplant survival: After the lung transplant, the one-year survival rate is typically 85-90%, and five-year survival is around 50-60%.
