The Intra-Aortic Balloon Pump (IABP) is a mechanical circulatory support device used to help patients with severe heart failure or cardiogenic shock stabilize while they wait for a heart transplant. The IABP is primarily used as a bridge to heart transplant for patients who are critically ill and require short-term support to improve hemodynamic function and ensure adequate perfusion of vital organs while awaiting a donor heart.

An IABP is a percutaneous (through the skin) device that temporarily assists the heart by increasing blood flow to the coronary arteries, improving cardiac output, and decreasing the workload on the heart. It is one of the most commonly used mechanical devices for short-term heart failure support.

What is an Intra-Aortic Balloon Pump (IABP)?

The IABP is a catheter-based device that consists of a balloon placed in the descending aorta, the large artery that carries oxygenated blood from the heart to the body. The device works by inflating and deflating in sync with the heart's pumping action, providing mechanical support to the heart and improving blood flow.

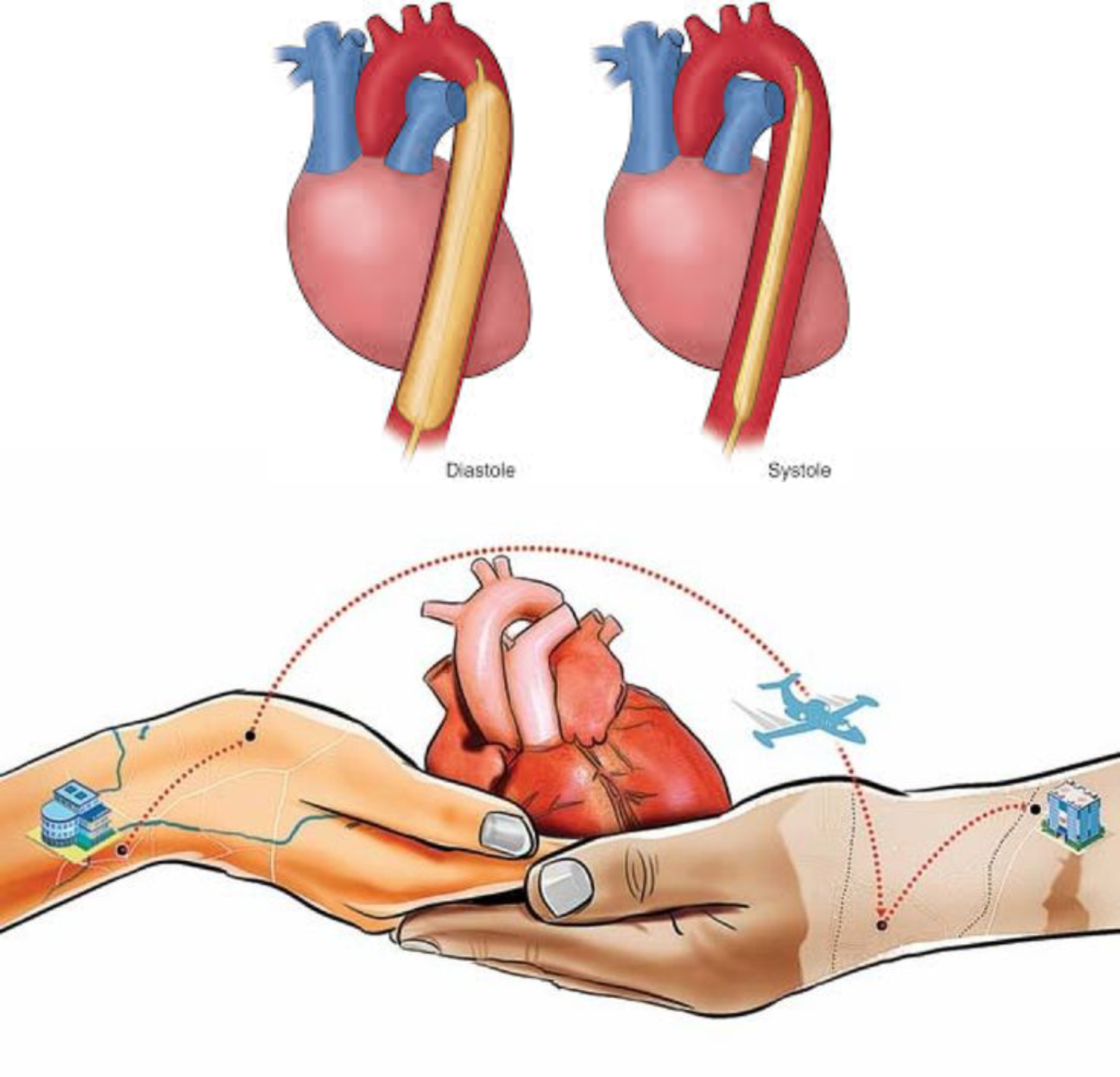

The IABP is inserted through the femoral artery (or sometimes the subclavian artery) and threaded up to the descending aorta, just below the left subclavian artery. The balloon is inflated during diastole (when the heart is at rest between beats) and deflated during systole (when the heart contracts and pumps blood).

How IABP Works

1. Balloon Inflation:
• The balloon inflates at the beginning of diastole (the relaxation phase of the heart), which increases blood flow to the coronary arteries (the heart's blood supply) by improving coronary perfusion.
• The increased coronary blood flow helps supply oxygen to the heart muscle and improves myocardial function.
2. Balloon Deflation:
• The balloon deflates just before systole (the contraction phase of the heart), which reduces afterload (the resistance the heart has to overcome to pump blood).
• This reduction in afterload makes it easier for the heart to pump blood, thereby decreasing myocardial oxygen demand and improving cardiac output.
3. Assisting Cardiac Output:
• By reducing the workload on the heart and increasing blood flow to the coronary arteries, the IABP allows the heart to function more effectively, even when it is severely weakened.

Indications for IABP as a Bridge to Heart Transplant

The IABP is used in patients who are in critical condition due to severe heart failure or cardiogenic shock and are waiting for a heart transplant. The most common indications include:

1. Cardiogenic Shock:
• Cardiogenic shock occurs when the heart fails to pump sufficient blood to meet the body’s needs, leading to low blood pressure, poor organ perfusion, and organ failure. The IABP can improve blood flow and provide circulatory support while the patient awaits a donor heart.
2. Acute Decompensated Heart Failure:
• In cases where a patient with chronic heart failure experiences sudden deterioration (acute decompensation), the IABP can help stabilize the patient while waiting for a transplant.
3. Severe Left Ventricular Dysfunction:
• Patients with severe left ventricular dysfunction (impaired pumping ability of the left ventricle) may benefit from IABP therapy, as it improves coronary blood flow and reduces afterload, which helps the heart pump more effectively.
4. Post-Surgical Heart Failure:
• After complex cardiac surgery, such as coronary artery bypass grafting (CABG) or valve surgery, patients may experience heart failure that requires support to maintain circulatory stability. The IABP can be used in such cases to provide temporary support.
5. Post-Myocardial Infarction (Heart Attack):
• Patients who have suffered a massive myocardial infarction (MI) with severe heart dysfunction may benefit from the IABP as a bridge to stabilize them until a heart transplant can be performed.
6. End-Stage Heart Failure:
• For patients with end-stage heart failure who are waiting for a heart transplant, the IABP provides circulatory support to maintain organ function and improve overall prognosis.

How IABP Works as a Bridge to Heart Transplant

The IABP device works by improving heart function and circulation temporarily, providing time for the patient to stabilize before a donor heart becomes available. Here's how it helps as a bridge to heart transplant:

1. Improving Coronary Blood Flow:
• The balloon inflation during diastole increases blood flow to the coronary arteries, enhancing the supply of oxygen to the heart muscle. This helps improve myocardial oxygenation, especially in patients with ischemic heart disease or left ventricular dysfunction.
2. Reducing Afterload:
• The balloon deflation during systole reduces afterload, which makes it easier for the left ventricle to pump blood into the aorta. This helps improve cardiac output and reduces the heart’s workload, which is crucial for patients with severe heart failure.
3. Enhancing Organ Perfusion:
• By improving cardiac output and reducing the workload on the heart, the IABP helps maintain perfusion to vital organs like the brain, kidneys, and liver, preventing organ dysfunction or failure due to inadequate blood supply.
4. Stabilizing the Patient:
• In patients awaiting a heart transplant, the IABP helps stabilize their hemodynamic status, making them more suitable for heart transplantation and improving their chances of survival during the transplant process.
5. Bridge to Recovery or Transplant:
• In some cases, the IABP can provide enough circulatory support for the heart to recover sufficiently, allowing the patient to avoid a transplant. However, in most cases, it serves as a bridge to heart transplant, maintaining circulatory stability until a donor heart is available.

Procedure for IABP Insertion

The insertion of the IABP is a minimally invasive procedure performed in the catheterization lab or operating room. Here's how the procedure is typically done:

1. Access Site:
• The procedure begins with the insertion of a catheter into the femoral artery (usually), although other sites, such as the subclavian artery, may be used. Local anesthesia is applied to the insertion site, and the patient may be sedated.
2. IABP Insertion:
• A catheter with the balloon attached is carefully advanced through the artery and into the descending aorta. The catheter is positioned just below the left subclavian artery to ensure proper placement of the balloon.
3. Balloon Inflation and Deflation:
• Once the balloon is in place, it is connected to a pump that inflates and deflates in synchronization with the patient’s heartbeat. The inflation occurs during diastole, and deflation occurs just before systole.
4. Monitoring:
• The device is continuously monitored for its effectiveness in improving cardiac function and circulation. The patient’s heart function, blood pressure, and other vital signs are closely watched.
5. Duration of Use:
• The IABP is typically used for a short-term period, often just days to a few weeks, until a suitable donor heart becomes available. It is removed once the patient is stable enough to undergo a heart transplant.

Benefits of IABP as a Bridge to Heart Transplant

1. Temporary Hemodynamic Support:
• The IABP provides essential circulatory support to stabilize patients with severe heart failure while they await a heart transplant.
2. Improves Myocardial Perfusion:
• By increasing blood flow to the coronary arteries, the IABP ensures that the heart muscle receives enough oxygen and nutrients, helping to improve heart function.
3. Reduces Myocardial Oxygen Demand:
• By reducing afterload, the IABP reduces the heart’s workload and its oxygen consumption, which is crucial for patients with weakened hearts.
4. Protects Vital Organs:
• The IABP helps ensure adequate blood flow to vital organs, preventing organ dysfunction caused by low blood pressure or poor perfusion.
5. Minimally Invasive:
• Unlike more invasive forms of circulatory support (such as ECMO), the IABP is inserted through a catheter and generally has a shorter recovery time after removal.
6. Improves Survival Rates:
• The IABP has been shown to improve survival rates for patients with cardiogenic shock or end-stage heart failure awaiting a heart transplant.

Risks and Complications of IABP Use

While the IABP provides essential support, it carries certain risks and complications:

1. Vascular Injury:
• Insertion of the IABP catheter can cause vascular complications, such as bleeding, hematoma, or arterial dissection at the insertion site.
2. Infection:
• As with any invasive procedure, there is a risk of infection at the catheter insertion site or deeper infections, including sepsis.
3. Thrombosis:
• The IABP can sometimes lead to the formation of blood clots (thrombosis), which may cause blockages in the arteries and lead to ischemic injury.
4. Hemolysis:
• The mechanical action of the IABP can lead to damage to red blood cells, causing hemolysis (destruction of red blood cells) and potentially leading to anemia.
5. Kidney Injury:
• Poor perfusion during IABP use may result in acute kidney injury in some patients, particularly those with preexisting kidney issues.
6. Device Malfunction:
• Although rare, the IABP can experience mechanical failure or malposition, which would require prompt correction.

Post-IABP and Heart Transplant Surgery

Once a suitable donor heart becomes available, the IABP is removed, and the patient undergoes heart transplant surgery. After the transplant, the patient will be monitored for rejection, infection, and other complications, and they will be started on immunosuppressive medications to prevent organ rejection.

Conclusion

The Intra-Aortic Balloon Pump (IABP) is a valuable tool for providing temporary circulatory support in patients with severe heart failure or cardiogenic shock awaiting a heart transplant. By improving coronary perfusion, reducing afterload, and stabilizing organ function, the IABP helps bridge patients to transplant, improving survival and outcomes. While it has risks, its benefits in managing critically ill patients make it an essential option in the heart transplant process.
